Auto-tooth Bone Graft


A bone graft made from the patient’s own teeth that is used to regenerate the gums during implant procedures

TBM Auto-tooth Bone Graft

TBM auto-tooth bone graft is a bone graft that made from the patient’s own teeth by safely built with the most advanced medical technology

  • Item TBM Auto-tooth Bone Graft
  • Storage Room temperature (Do not release before use)
  • Model Number TBM-1601001
  • License Number 3658
  • Use-by date 3 years
  • Manufacturer TBM Corporation / B-303, 313, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 61008
  • Safety As a tooth of the patient, which is genetically same, is used, it is the most safe without danger of genetical or infectious diseases.
  • Technical Improvement Good prognosis as the surgery is done predictably under the condition that the bone becomes stable
  • Custom-made Several sizes and shapes (block, powder) and packing method (ball type, syringe type) according to the condition of a patient.
  • Shortening the treatment period Rapid healing through high osteogenesis, osteoinduction and bone conduction property of auto-bone.
Auto-tooth Bone Graft Manufacturing Process
Auto-tooth bone graft material is a bone graft material made of a patient’s own tooth, which is to be used for ulitis regeneration at the time of implanting. TBM ‘s auto-tooth bone graft material is composed of low crystalline carbonic acid HA, which is similar to human body bone tissue, so that it exerts the most excellent osteoinduction and conduction function, reacting to collagen and several growth factors. It is the bone graft material made of his (her) own tooth, containing all the organic materials (type I collagen, noncollagenous protein), which are the most similar to alveolar bone.
  • 01Extracted tooth
  • 02Remove foreign body and cleanse
  • 03Pulverizing
  • 04Secession and Cleanse
  • 05Lyophilization
  • 06Packing, Sterilization, Labeling

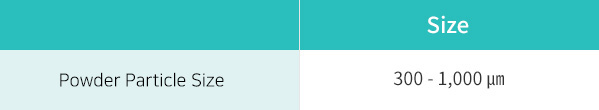

TBM Auto-tooth Bone Graft Powder Particle Size

    • Other size(provided in basic size if particle size is not completed on request)
      S : 300 ~ 500 um
      L : 600 ~ 1,000 um
      XL : 1,000 ~ 1,400 um

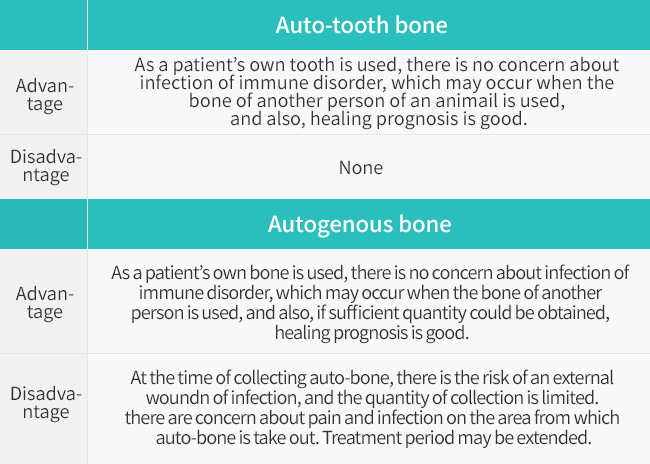

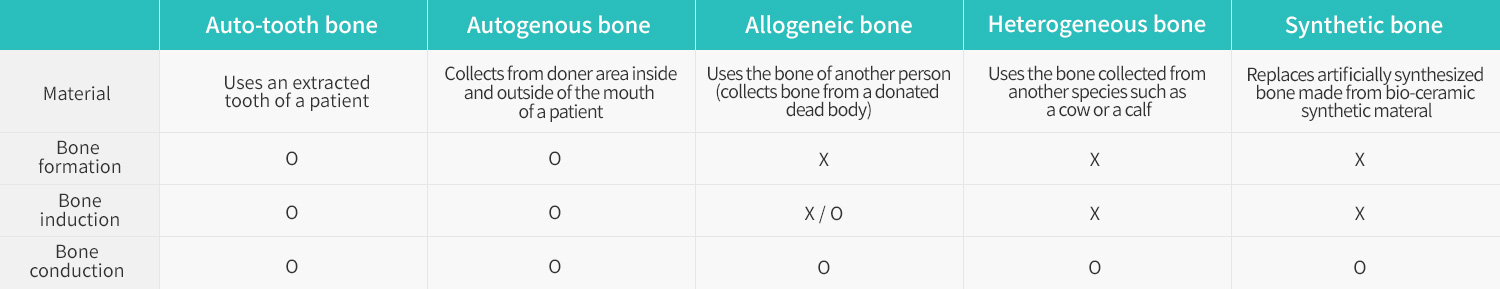

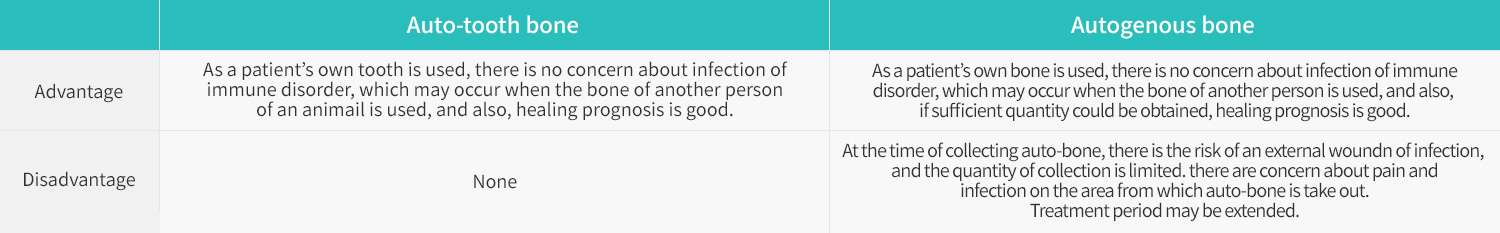

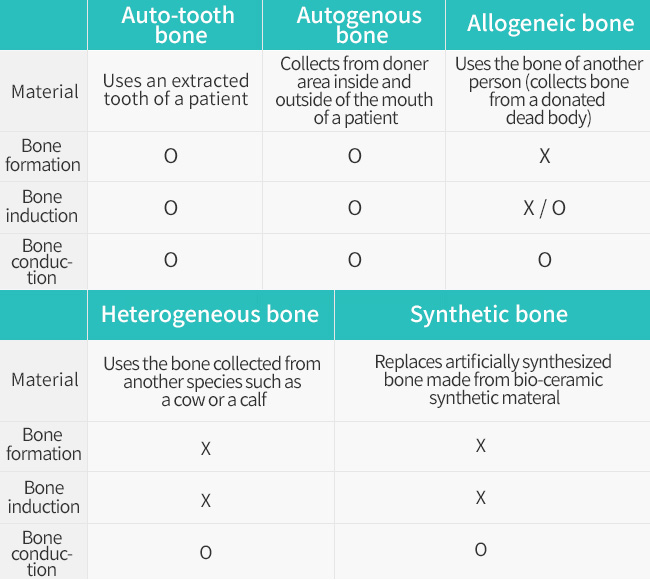

TBM Auto-tooth Bone Graft Competitiveness
    • Safer
      As the product uses his (her) own teeth, which are genetically same, there are no risk of genetic and infectious diseases, which may occur in case of using the bone of existing different or same kind of species. So it is safer than any other graft materials.
      More Excellent
      Own-tooth bone graft material has the efficacy which is same as that of auto-bone, overcoming the constraints of the burden of secondary surgery, limited quantity of collection and so on, which are the disadvantages of auto-bone, having osteogenesis, osteoinduction and bone conduction property of auto-bone.
      As it contains genetically same organic materials (type I collagen, noncollagenous protein) and inorganic materials (ACP, OCP, B-TCP, H.A) as that of the patient, bone remodeling is possible.
      May expect more efficacy than that of auto-bone through demineralized bone matrix (DBM)
      As a predictable surgery is performed under the condition that the bone is stabilized, long-term prognosis is good.
      Custom-made to the patient
      Custom-made of several sizes and shapes (Powder, Block) to the condition of the patient is possible.
Use and Manufacturing System
Bone graft material for the case of alveolar bone loss according to periodontal disease and aging Used for implant and ulitis regeneration

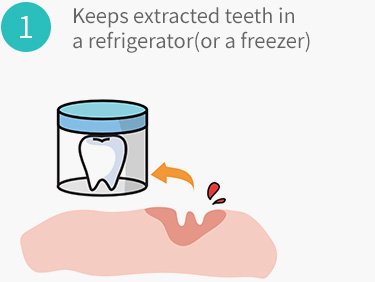

  • Keeps extracted teeth in a refrigerator(or a freezer)

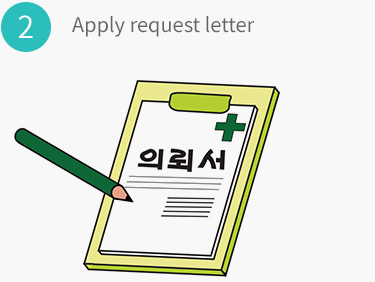

  • Apply request letter

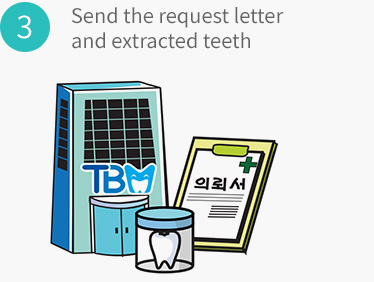

  • Send the request letter and extracted teeth

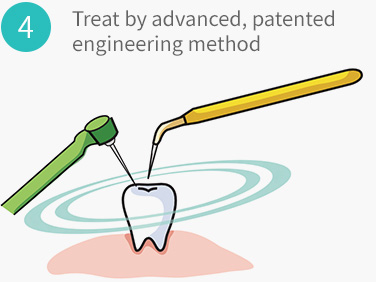

  • Treat by advanced, patented engineering method

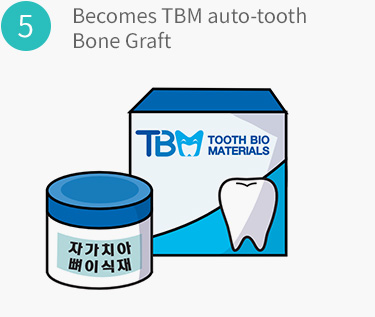

  • Becomes TBM auto-tooth Bone Graft

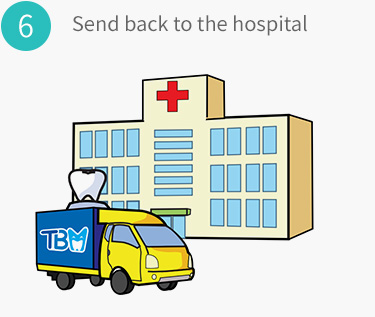

  • Send back to the hospital
  • Implant to the patient

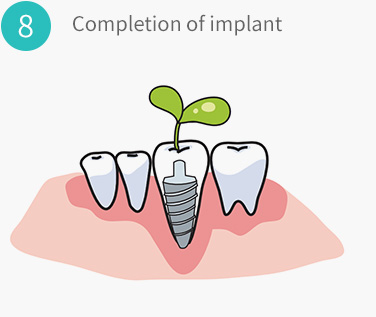

  • Completion of implant
TBM Clinical Case
  • 1. It has the efficacy which is same as that of auto-bone, overcoming the constraints of the burden of secondary surgery, limited quantity of collection and so on, which are the disadvantages of auto-bone, having osteogenesis, osteoinduction and bone conduction property of auto-bone.
  • 2. As it contains genetically same organic materials (type I collagen, noncollagenous protein) and inorganic materials (ACP, OCP, B-TCP, H.A) as that of the patient, bone remodeling is possible.
  • 3. Expects more efficacy than that of auto-bone through demineralized bone matrix (DBM).
  • 4. As a predictable surgery is performed under the condition that the bone is stabilized, good long-term prognosis could be expected.
  • 5. Immunoreactive substances being removed, there are no possibility of immune rejection response and contagion of diseases. The form can be maintained against immediate dynamic stress or extrusion load after implant.
  • 6. The growth factor, BMP, removes calcium phosphate to improve osteoinduction ability. So it has fast osteoinduction ability and low absorbency so that it has the advantage of maintaining the form until bone tissue regeneration

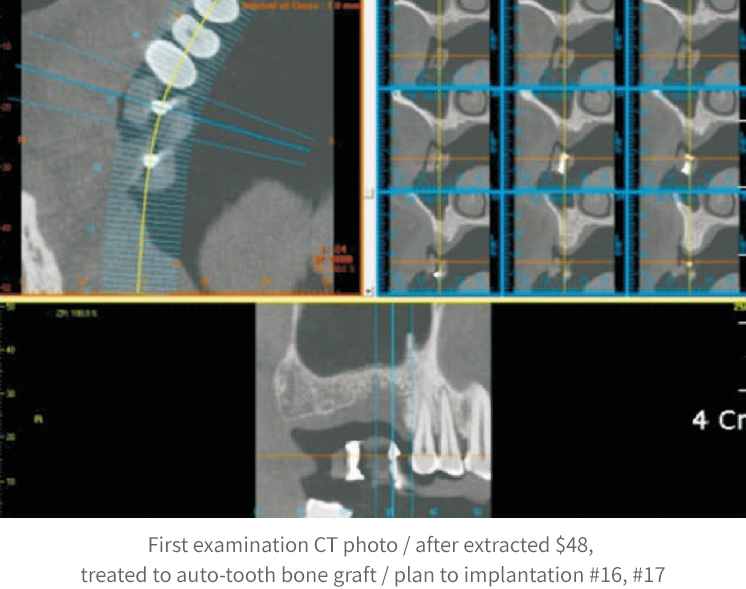

Case #1 (Maxillary sinus bone graft)
  • 상악동골이식술 적용 증례1
  • 상악동골이식술 적용 증례2
Case #2 (Block Type)
  • 자가치아뼈이식재 사용증례1
  • 자가치아뼈이식재 사용증례2
Case #3 (Powder Type)
  • 자가치아뼈이식재 사용증례3
  • 자가치아뼈이식재 사용증례4
  • 자가치아뼈이식재 사용증례5
  • 자가치아뼈이식재 사용증례6
  • 자가치아뼈이식재 사용증례7
